REAR MOUNt Z-Brace Kit
As a better alternative to the existing 3D Printed z-brace mods, this professional grade kit is manufactured using all metal components for maximum frame rigidity. From the steel ball joints to the adjustable rods, it's as simple to install as it looks.
Designed as a drop-in upgrade for the Creality CR-10/CR-10S 3D Printers, there is no need to thread tap extrusion or make other permanent modifications that will void the warranty. The aluminum brackets are a bolt-on solution, mounted to existing points on the frame.

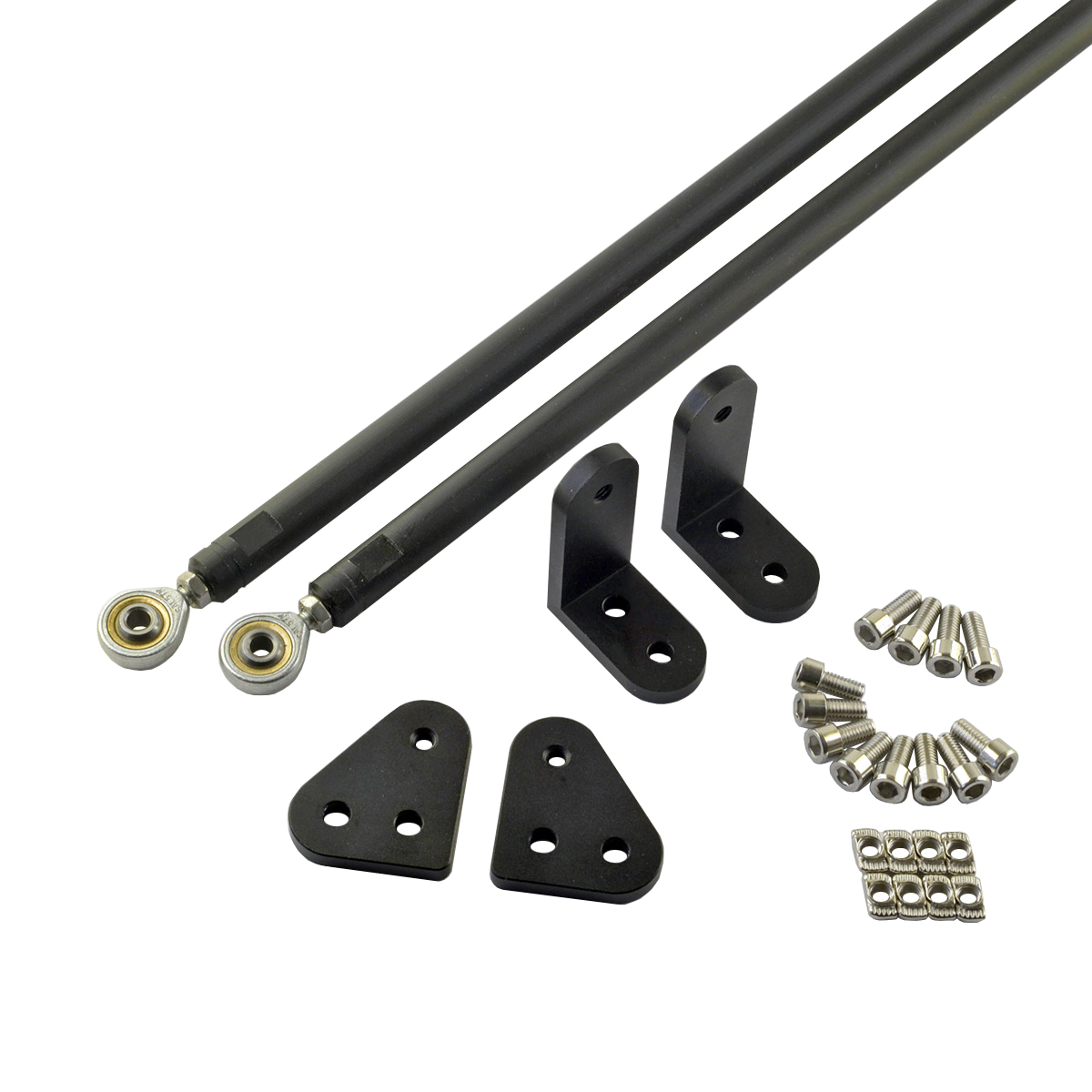

CR-10 Z-BRACE KIT
Designed using the Turnbuckle principle, the aluminum rods can extend or contract by rotating the tube clockwise or counterclockwise. Adjustments are then locked into place by tightening the counter nuts on each end, making the frame rigid and stable.Buy now
Ball Joint Rod Ends
Steel ball joints help to prevent misalignment between the upper and lower frame brackets, remaining completely adjustable until the counter nuts are tightened in to position. Attached to the frame using metal mounting brackets and M5 hardware, these ball joints securely lock the aluminum rods in to place, which eliminates unwanted tension that can otherwise skew the frame.
Black Anodized Aluminum Rods
In contrast to the 2 part interlocking design from Creality3D, the Rear Mount Z-Brace Kit incorporates a thick, single 12mm aluminum rod on each side of the frame, which results in less flex and increased rigidity. Using left and right hand threads on each respective side, the lengths can then be easily adjusted to extend or contract as needed, making it simple to fine tune during and after installation.
10 Minute Assembly
The Creality CR-10 Rear Mount Z-Brace Kit is a minimalist design, built with convenience in mind. Mounting plates bolt to the existing frame and the rods lock in place using M5 screws and T-nuts. No thread taps or other permanent modifications are necessary.
As a complete package, the assembly process is simple and straightforward, taking less than 10 minutes to install from start to finish. All necessary hardware is included.
Black Anodized Aluminum Brackets
Designed as a bolt-on solution, the aluminum brackets provide a rigid mounting point for the rods to brace the upper and lower frame. These plates are installed using the included M5 screws and T-nuts which lock inside of the channels, in lieu of thread tapping the extrusion which can otherwise cause permanent damage the machine.

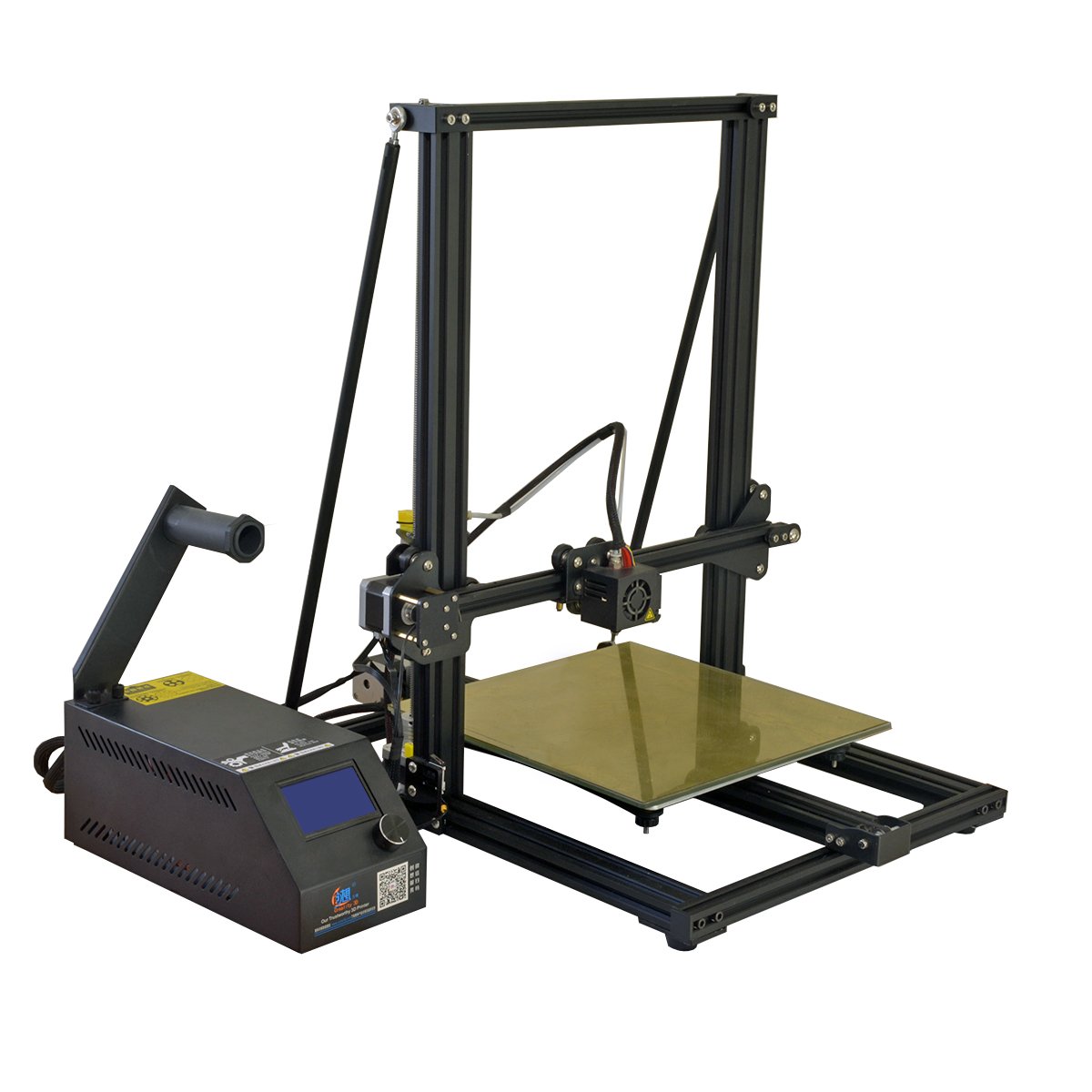

Rear Mounted Design
Offering increased accessibility and improved aesthetics, the Z-Brace Kit is designed to mount on the rear of the CR-10's frame. This prevents unwanted obstructions that can hinder access to the build plate on the front and sides of the machine, while also maintaining the overall appearance of the 3D Printer.
Experience the Benefits
The CR-10 frame design is prone to movement which can create artifacts called banding, especially at higher print speeds. Z-Braces address this problem by locking the upper frame against the base, increasing the overall rigidity and eliminating wobble.Buy now
Frequently Asked QuestionS
Due to variations in the frame size, the Z-Brace Kit will only fit the CR-10 and CR-10S. While the brackets and hardware are interchangeable, the rod lengths will vary for other 3D Printers.
The Z-Brace Kit uses standard M5 hardware and can be assembled using the hex wrenches included with the CR-10/CR-10S 3D Printers.
